实验说明

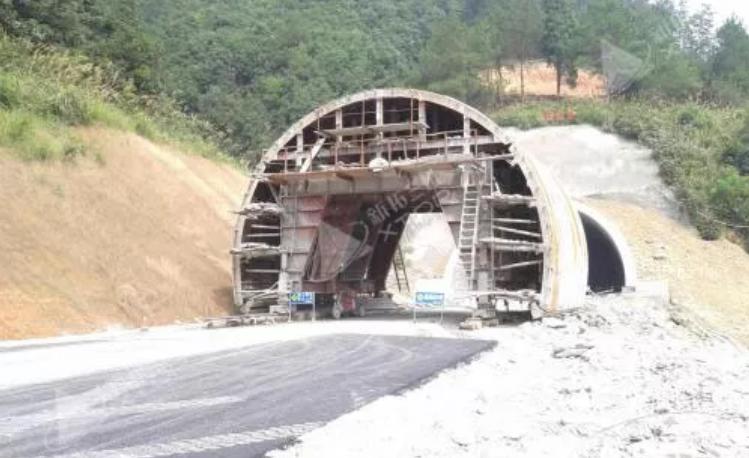

巷道衬砌结构性能研究，在地下开采中，主要巷道的支护属于永久性支护，而衬砌支护则是永久性支护的一种重要手段，因此，在矿上开采或者隧道施工中，衬砌结构的强度和稳定性，是保证工程安全实施使用的重要手段。
XTDIC系统通过观测相似模拟试验中衬砌内壁全场应变以及裂隙发展，可以为衬砌设计提供重要的数据依据。
